CA206 Semi-micro pH sensor
designed for test tube
| Order number |
CA2061B |
| former order number |
- |
| |
|
| Specifications |
|
| pH range |
0 - 12 |
| zero point (pH) |
7.00 ± 0.25 |
| |
|
| temperature range |
0 - 80 °C |
| temperature probe |
- |
| |
|
| shaft material |
Glass |
| membrane glass |
W28 |
| membrane resistance |
< 500 MΩ |
| |
|
| reference system |
SNEX(White) Ag/AgCl/KCl |
| reference diaphragm |
one porous ceramic |
| |
|
| bridge electrolyte |
3.3 mol/L KCl |
| Refillable |
Yes |
| junction |
Double |
| |
|
| electrode cap |
Standard Lab |
| cable length |
1m |
| connector |
BNC |
| |
|
| cell constant (cm-1) |
- |
| cell type |
- |
| |
|
| indicating metal |
- |
| |
|
| Storage |
3.3 mol/L KCl |
| |
|
| |
|
| Special features |

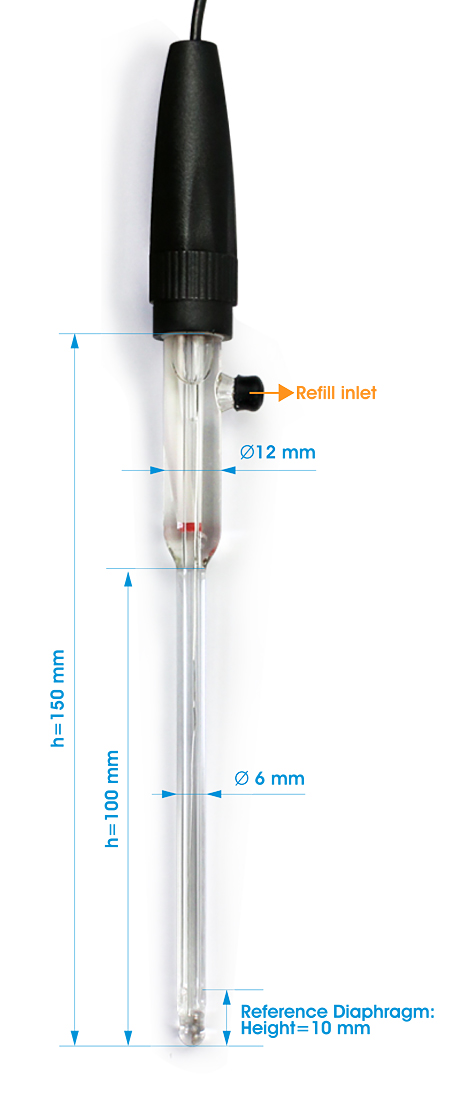

| Semi-micro electrode diameter 6 mm, length 100 mm |
| SNEX White reference system,double junction |
| ceramic diaphragm, pore size 0.9 μm |
| minimum depth of immersion: 7 mm |
